Anthem™ Three-port recessed mechanical thermostatic valve

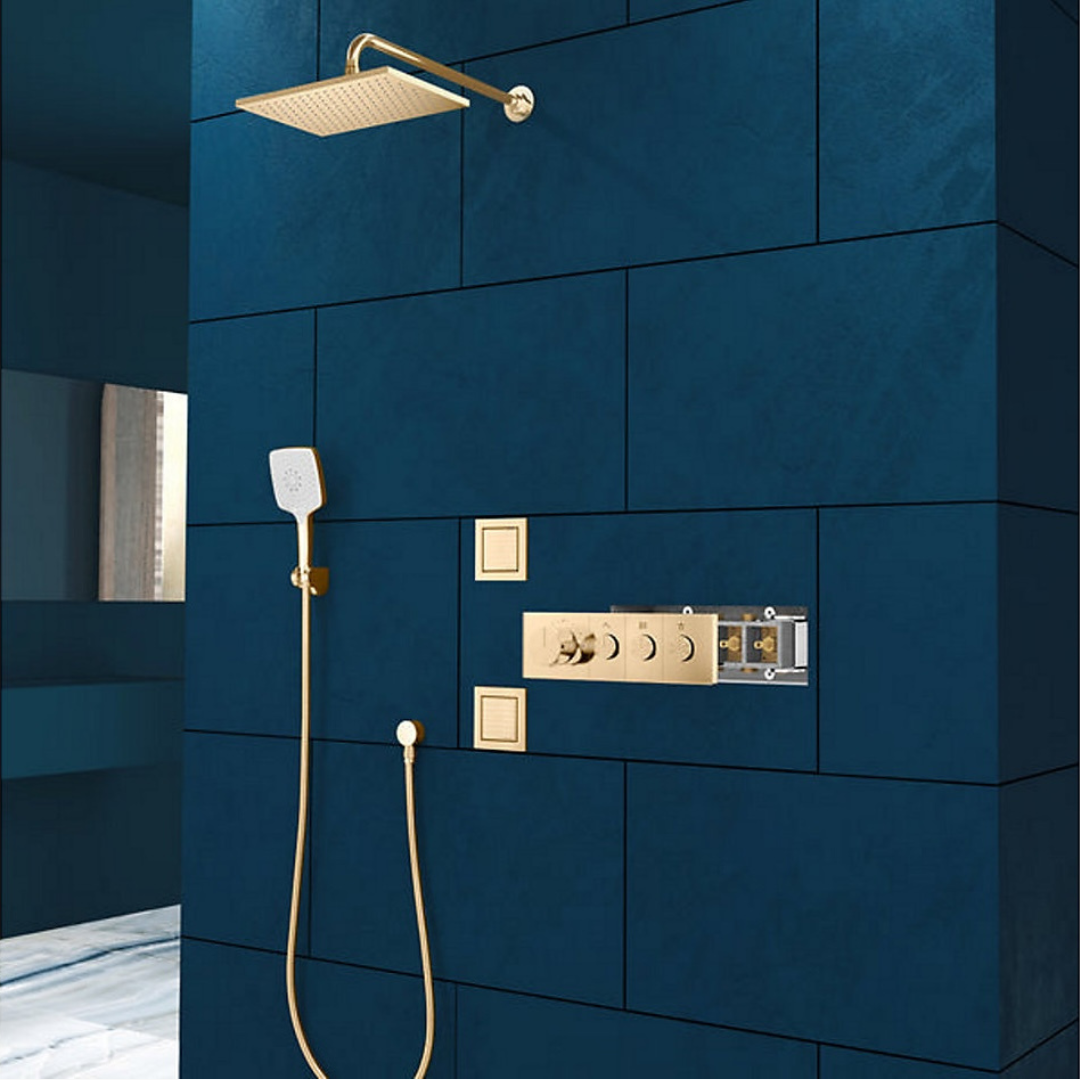

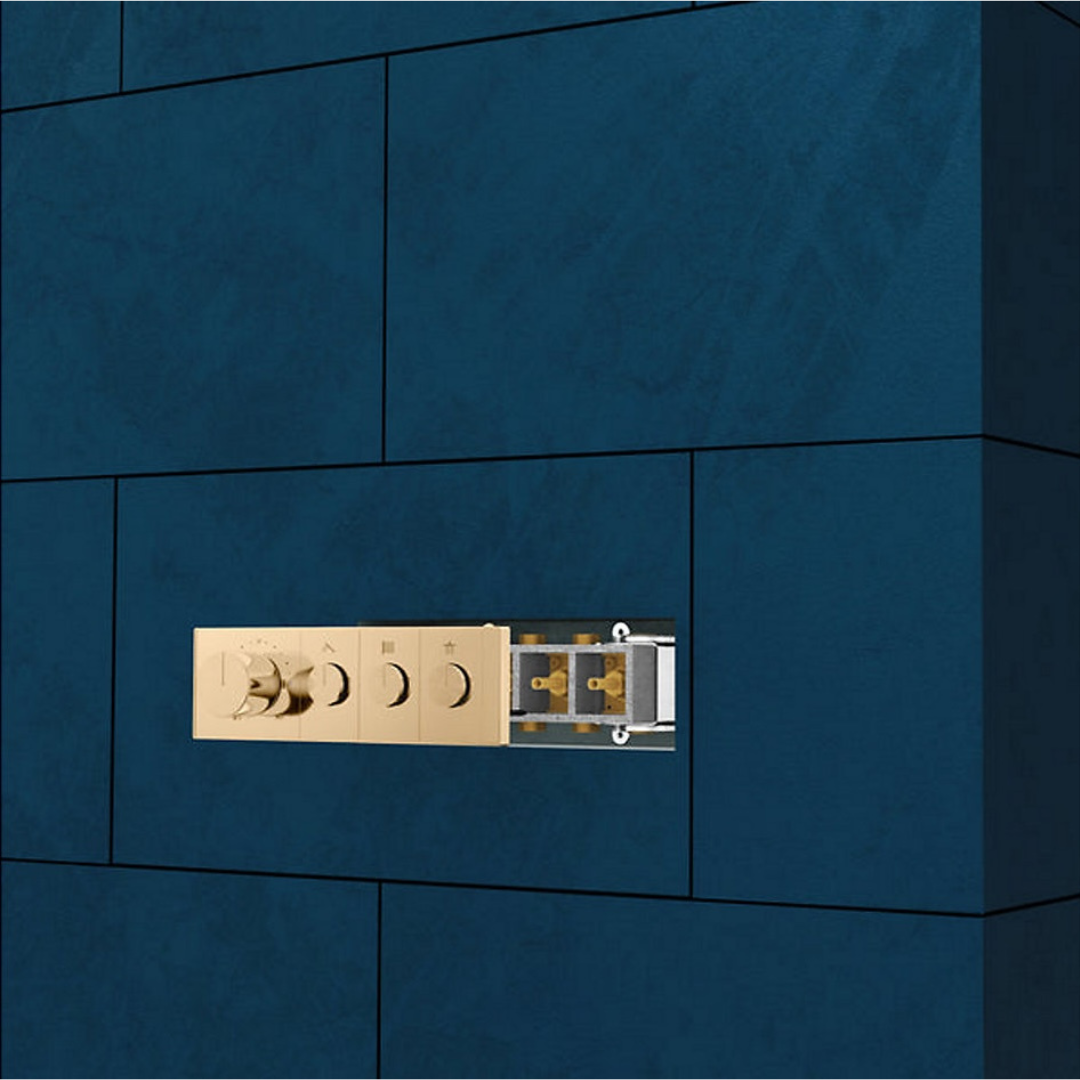

Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With three independently controllable ports, this valve is ideally suited for applications where up to three outlets are required.

Features

• High-flow thermostatic mixing valve
• Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
• Up to 50 lpm (13.3 gpm) flow rate at 3.1 bar (45 psi) with maximum flow of 39.5 lpm (10.5 gpm) from one outlet
• G 3/4 female inlet connections
• G 1/2 female outlets
• Antiscald protection
• Integrated adjustable high-temperature limit stop to control maximum water temperature
• Adjustable comfort setting (preset at approximately 37°C)
